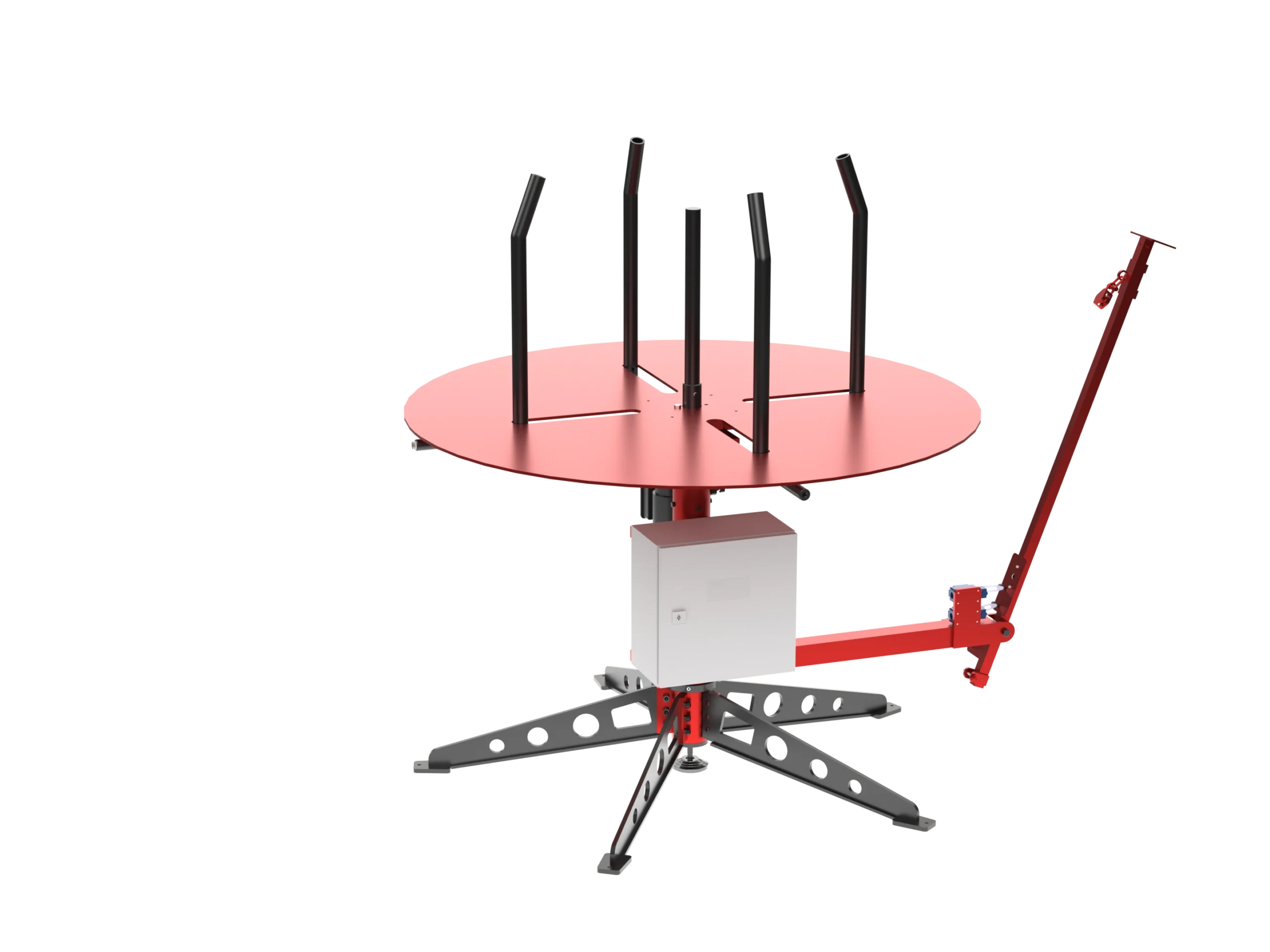

Material decoiler / electrical

Material decoiler / electrical

  • Loadable up to 1,200 kg
  • electric drive
  • Coil material from Ø 1 – 13 mm

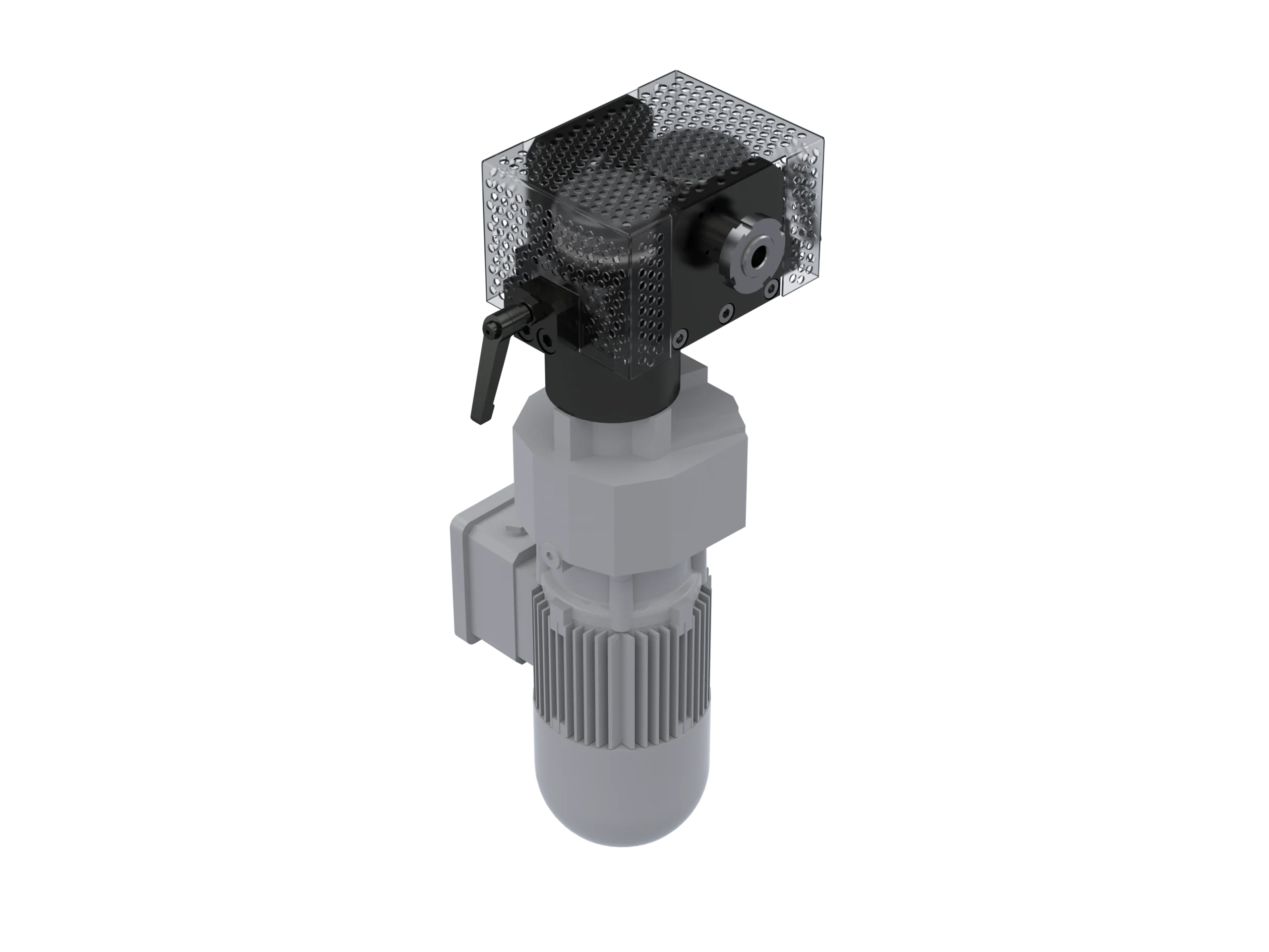

Drive in unit

Drive in unit

  • Drive-in unit for driving the material
    material into the straightener
  • Wire Ø from 5 mm

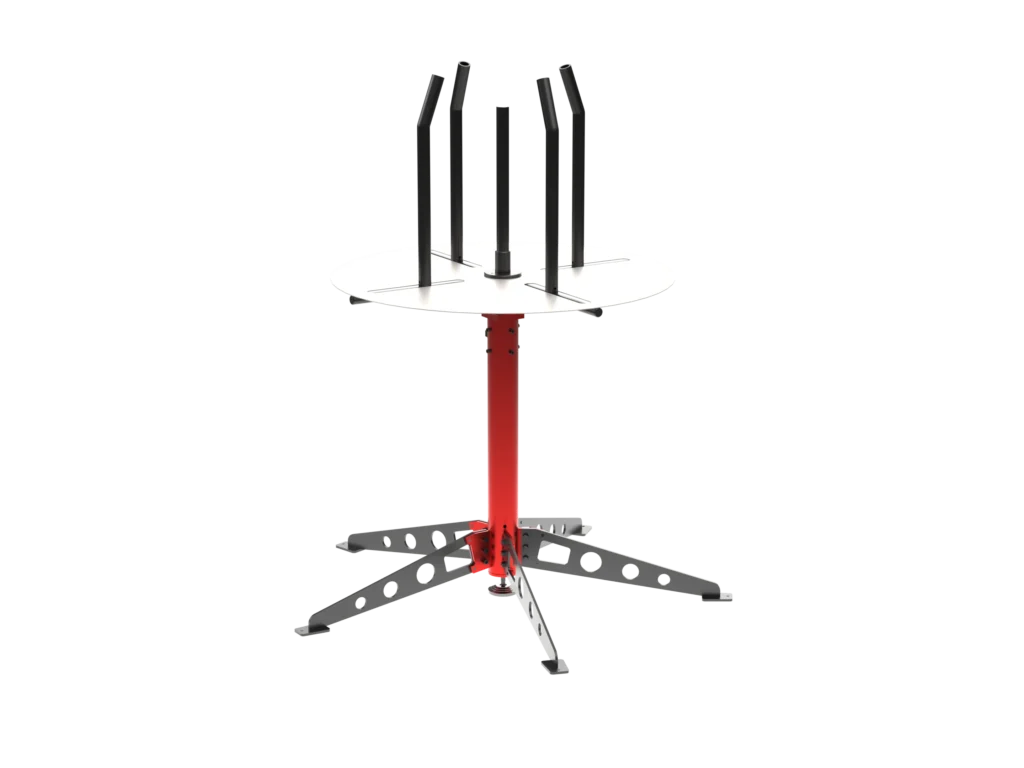

Material decoiler / mechanical

  • Loadable up to 500 kg
  • Coil material from Ø 1 – 13 mm
Material decoiler / mechanical
Wolf - Material Feed Options
Step feeder Wolf Maschinenbau AG

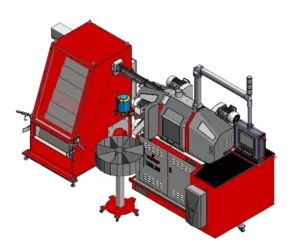

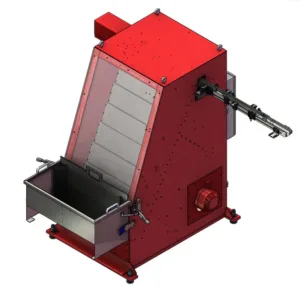

Step feeder

Step conveyor at the side or behind the machine. Single or double feeding of sections / turned parts.

  • Design according to the customer requirements and range of parts
  • Simple filling by docking the hopper car
  • Very high filling speed
  • Ideal also for longer parts
  • Low-noise
Step conveyor at the side or behind the machine. Single or double feeding of sections / turned parts.
Wolf - Material Feed Options
Option to the oscillating feeding bowl: Divided bowl feeder

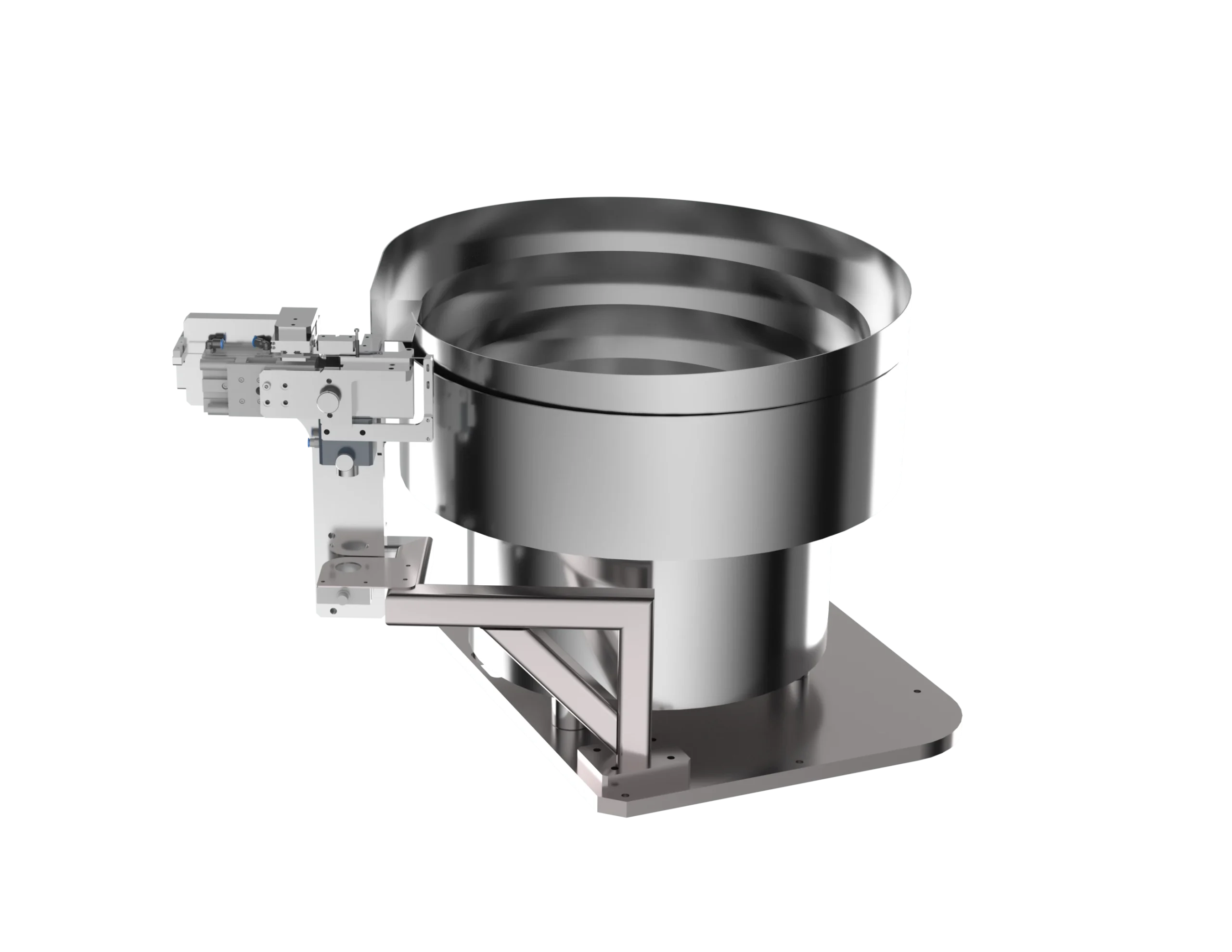

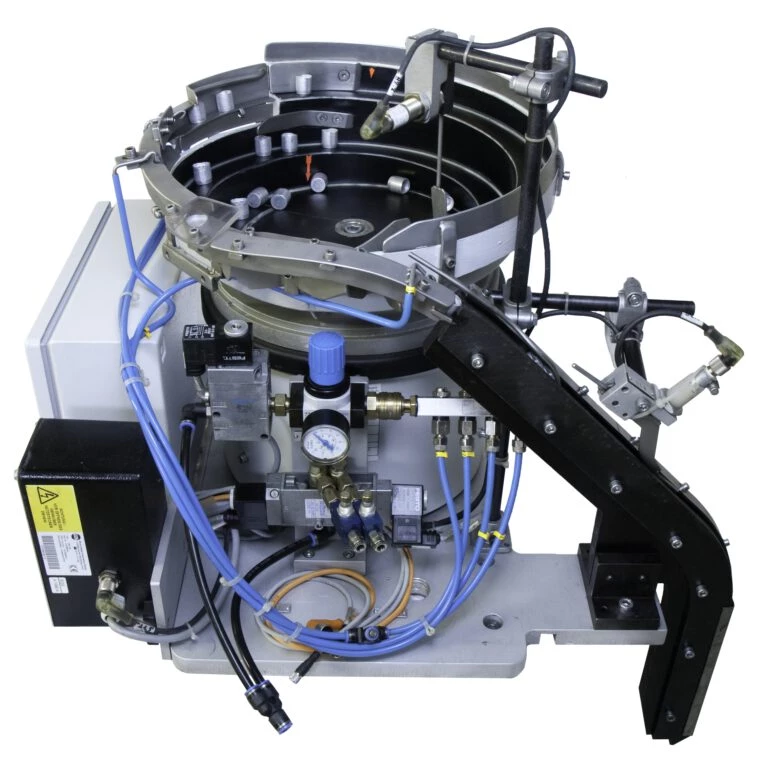

Oscillating feeding bowl

  • Reworked parts / individual parts up to a Ø of 33 mm
  • Pot is individually adapted to the parts to be processed
  • Parts separation up to 52 parts / minute
  • Feeding rail / parts separation
    • Parts are fed into the machine room
    • Pneumatic parts separation
    • Pneumatic insertion of the parts to the clamping points

Option to the oscillating feeding bowl:
Divided bowl feeder

  • Enables easy loading of the feed hopper
  • The hopper volume is adapted to the customer’s needs.
  • Sensors for minimum fill level are integrated
  • Filling speed is infinitely adjustable.
Oscillating feeding bowl
Wolf - Material Feed Options

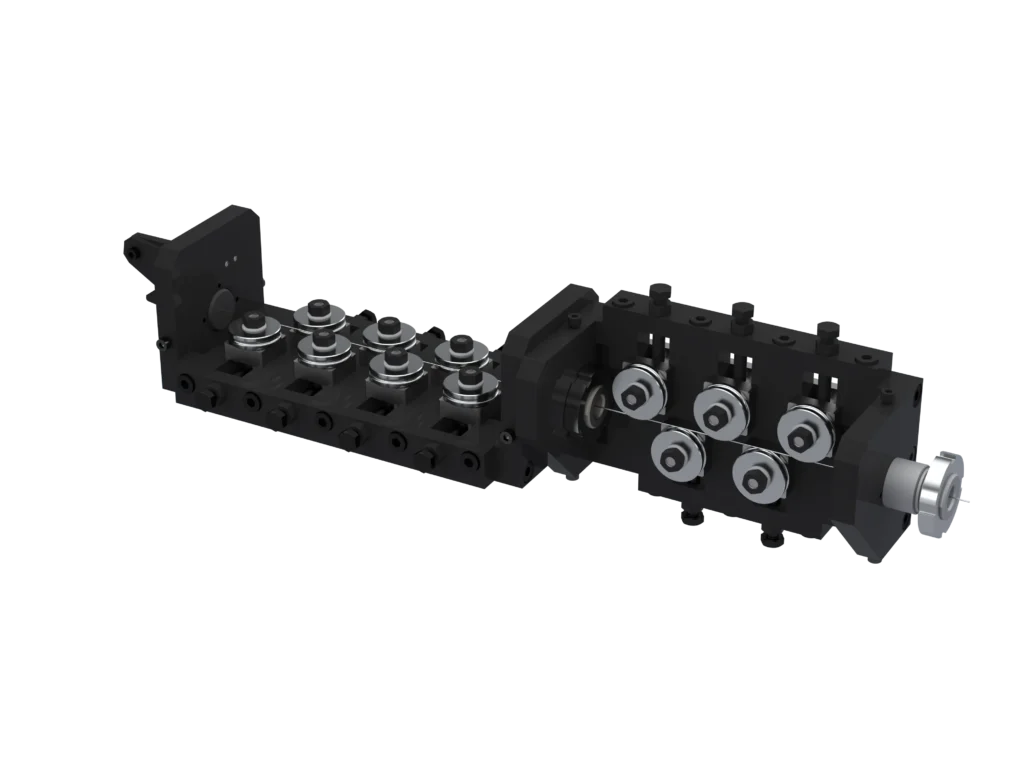

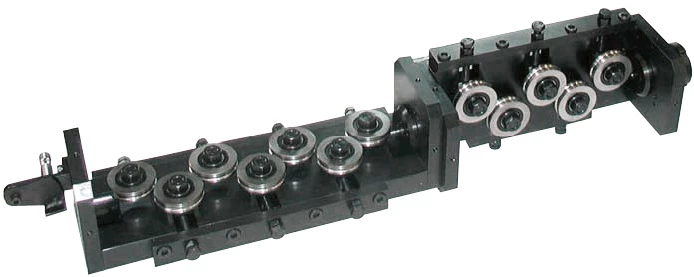

Cross straightening unit

Cross straightening unit

  • 12 straightening rollers, 7-fold + 5-fold
  • Cross straightener small for wire Ø 1 – 4 mm
  • Cross straightener medium for wire-Ø 4 – 8 mm
  • Cross straightener large for wire Ø 8 – 13 mm

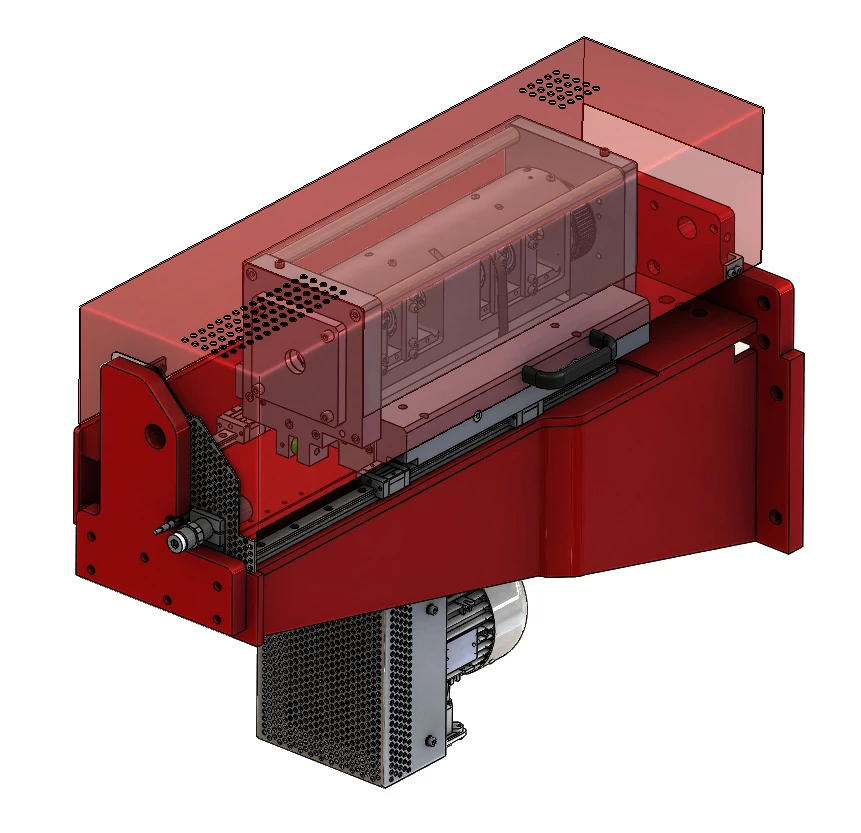

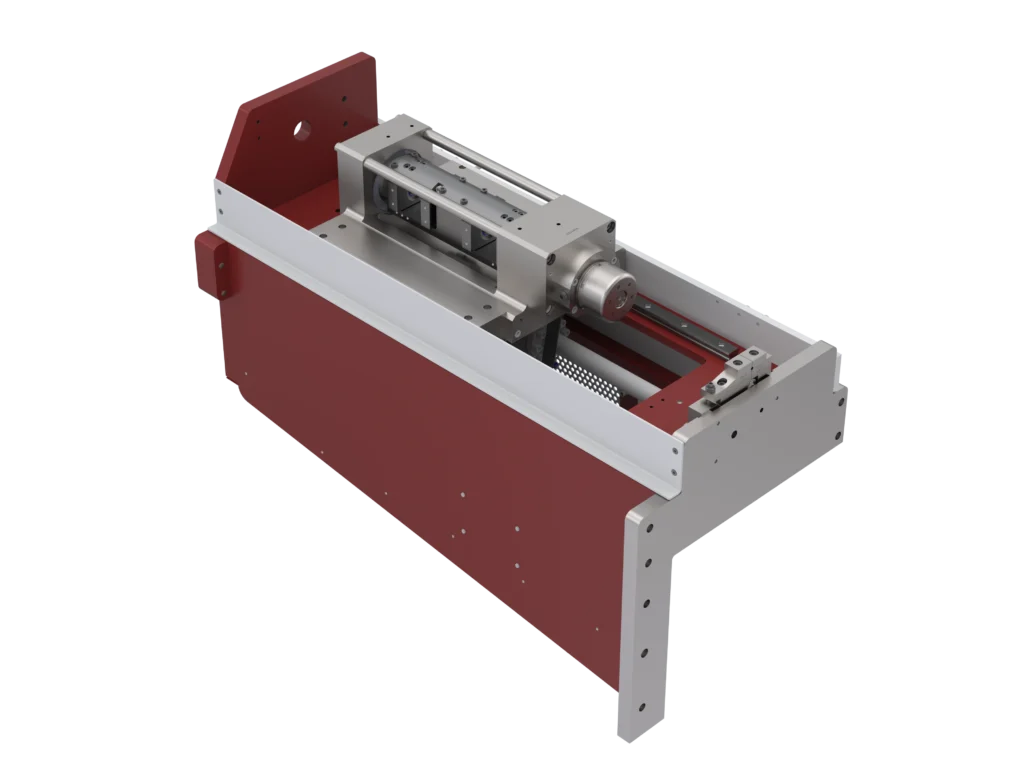

Rotating straightening unit

  • Possibility of overstraightening for better straightness
  • highly dynamic due to low moving masses
  • for wire-Ø 1 – 6 mm, small with integrated inserter
  • for wire-Ø 6 – 12 mm, large
Rotating straightening unit
Wolf - Material Feed Options
Specially designed for fast bar processing. Guaranteed low residual bar length. To reduce reloading for larger material diameters, bundle loaders can also be provided.

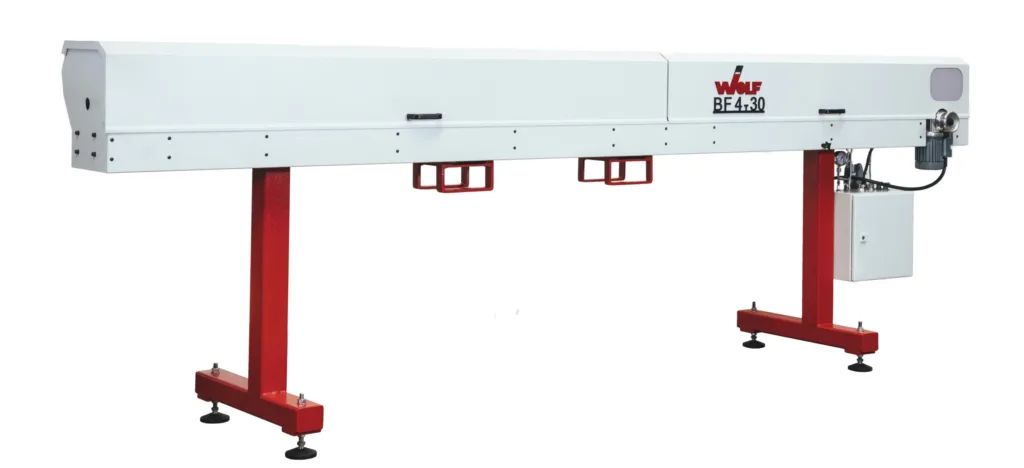

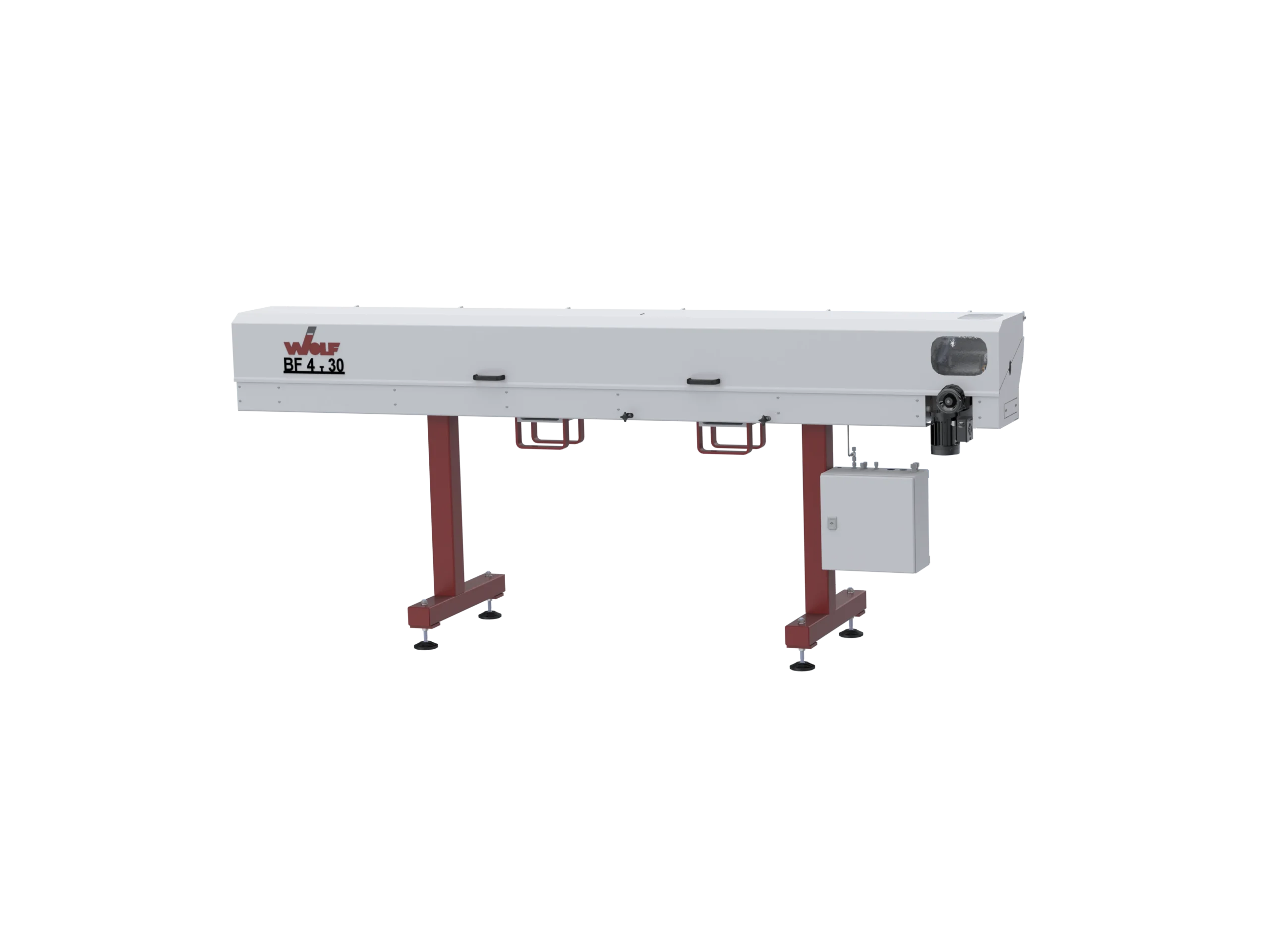

Bar feeder

Specially designed for fast bar processing. Guaranteed low residual bar length.
To reduce reloading for larger material diameters, bundle loaders can also be provided.

  • Rod Ø from 4 mm to 30 mm
  • Length of bar support: 450 mm
  • Quickly convertible
    quickly adjustable
  • Remaining lengths smaller than 60 mm possible
  • Bar lengths: 3 m / 12,5 ft / 4,5 m / 6 m

Bar feeder options:

  • Extension of the bar support up to 1,000 mm
  • Sensor for bar minimum filling quantity with output of a message on the control panel
  • Front stop for bar positioning
  • Turning device for profile material
  • Bundle loader
  • Bar length can be processed from 120 mm
Wolf - Material Feed Options
Loading and unloading via intergrated robot.

Robot unit

Loading and unloading via intergrated robot.
